What is an SMD Screen?
Below, the SMD Screens are described in details.
How do SMD Screens Work? Detailed Guide:
SMD Screens, high-resolution displays, and digital signage are crucial parts of modern display technologies. They provide vivid, high-quality visuals with the aid of Surface-Mounted Diode (SMD) technology. What makes them better than the old-fashioned Dual Inline Package (DIP) displays? We’ll go over the science behind them and how they work.

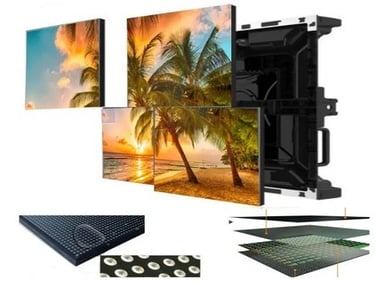

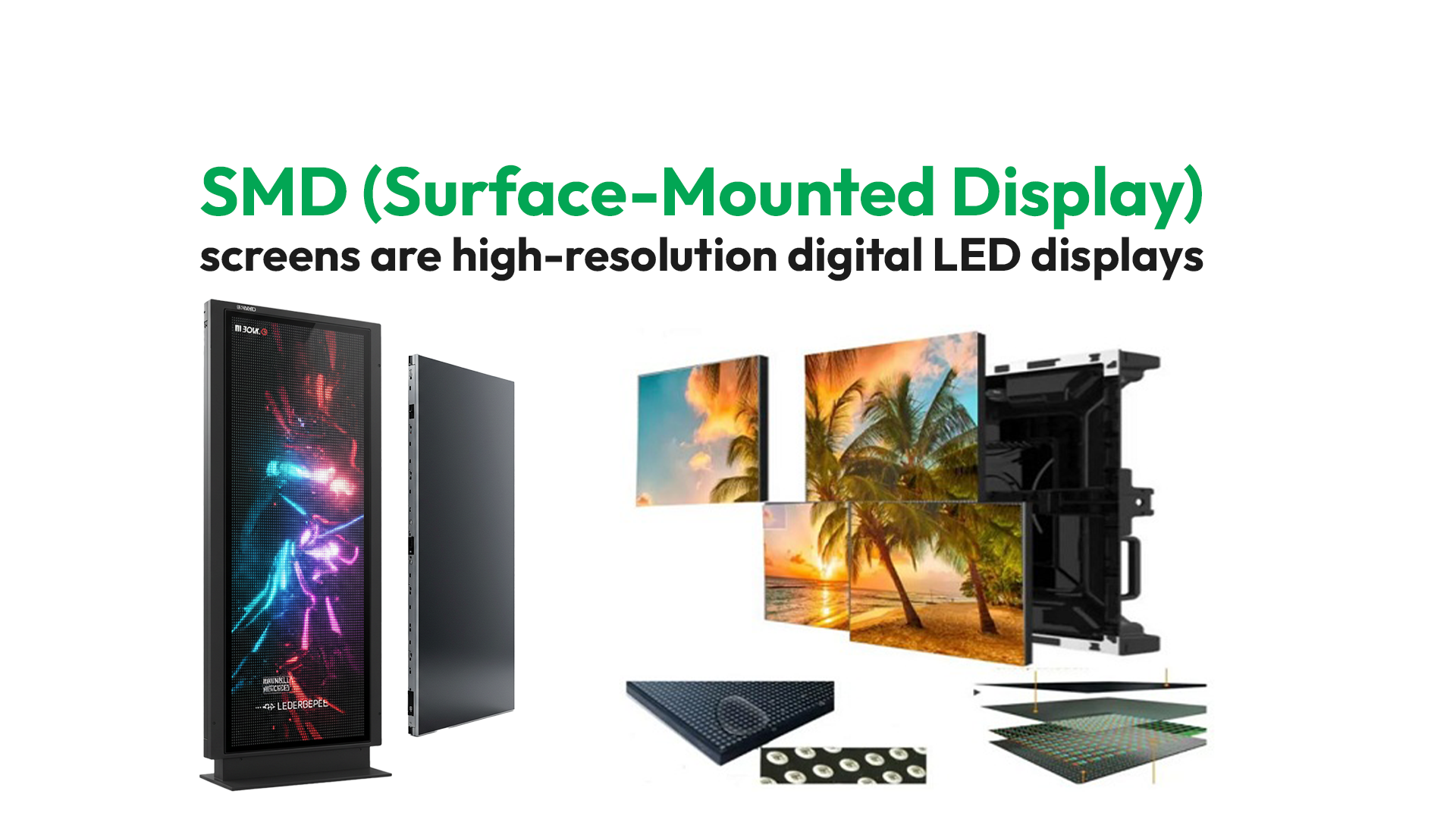

What is SMD Screen?

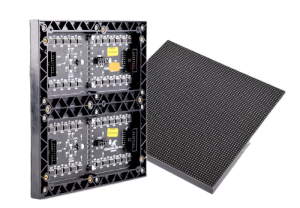

SMD screen is one kind of light-emitting diode technology. SMD, also known as a Surface-Mounted Device, involves soldering tiny diodes directly onto a circuit board. In an SMD screen, three diodes—red, green, and blue—are housed within a single chip, which is mounted onto the surface of the screen. These tiny light-emitting diodes (LEDs) work together to produce full-color displays.
The Science Behind SMD Technology
SMD LED technology operates by placing the diodes directly on the surface of a circuit board. In contrast to DIP LEDs, which use separate red, green, and blue diodes placed into individual holes in the circuit board, SMD diodes are compact and efficient. This makes the screen thinner and lighter, offering superior resolution and better color reproduction.

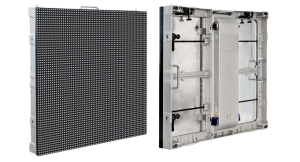

SMD displays consist of many surface-mounted devices. Each device includes three tiny LEDs—one red, one green, and one blue—within a single chip. These chips are evenly distributed across the screen to form the pixels. The more densely packed the chips, the higher the pixel density and resolution, allowing for sharper images and smoother video playback.
SMD LEDs emit light when an electric current passes through them. The current excites the electrons within the diode, which releases photons. This process produces the light that we see on an LED display screen. By adjusting the intensity of the red, green, and blue diodes, SMD screens can display millions of colors, creating vibrant colors with high brightness.
Understanding Pixel Pitch, Resolution, and Brightness
The pixel pitch is an important consideration in understanding surface-mounted diode (SMD) LED displays. It is the measurement of the distance between two neighboring pixel centers that is measured in mm (millimeters). Smaller pixels mean higher resolutions and greater image clarity. Here is a simple way to understand the pixel pitch, resolution, and brightness of SMD screens:
Pixel Pitch:
A smaller pixel pitch means the pixels are closer together, resulting in a sharper image. To illustrate the point, a P2.5 screen, which has 2.5 mm spacing between pixels, provides a greater resolution than a P10 screen, which has 10 mm spacing between pixels.
Resolution:
Resolution is the number of pixels on the screen. It is the measure of how sharp a screen is. Applications that require utmost clarity and detail, like broadcast studios or high-end digital signs, are best served by high-resolution LED screens.
Brightness:
High brightness ensures the screen is visible even in bright environments. For example, SMD displays with high brightness are perfect for outdoor environments. make them perfect for usage in bright outdoor environments.
SMD Screens Vs. DIP Screens
Diode structure is the key differentiator between SMD screens and DIP screens. DIP LEDs use separate red, green, and blue diodes for each pixel, which are inserted into holes in the circuit board. Although DIP screens are still utilized in certain extensive outdoor applications, SMD displays offer numerous benefits:
Resolution: SMD screens can pack more diodes into the same area, resulting in higher pixel density and high-quality images.
Design: The compact nature of SMD LED screens allows for thinner, lighter displays, making them more versatile.
Viewing Angles: The design of SMD display screens provides better viewing angles than DIP screens, which can suffer from color distortion when viewed from the side.
Benefits of SMD LED Displays
Finally, here is what makes SMD Displays the best option:
High Resolution: The small size of surface-mounted diodes (SMDs) enables a higher density of LEDs to be housed in a given area, leading to higher resolution. Screens with higher resolutions offer high-quality quality detailed, and clear images.
Wide Viewing Angles: SMD displays have a big plus when it comes to viewing angles. From all directions, viewers won’t notice any color loss or distortion on the screen.
Energy Efficient: SMD LEDs are renowned for being energy efficient, meaning they use less power than other display kinds. For that reason, they are a good investment for the future.
Bright Colors and Excellent Visibility: The screens work effectively even when placed directly in the sun, so they may be used indoors or out.
Durable and Affordable: The affordability of SMD LED screens is a major plus. Despite providing displays of high quality and resolution, SMD screens are cheap to make and keep up to date. On top of that, they last a long time, making them a practical choice for indoor and outdoor applications.
Conclusion
To sum up, SMD displays give much better technology for showing things. Surface diodes (SMDs), which are red, green, and blue diodes that are packed closely together on circuit boards, are at the heart of SMD screens. This new technology has high clarity, bright colors, a wide viewing angle, and uses little energy. SMD screens are more flexible than DIP screens because they have higher pixel density and smaller sizes. For both indoor and outdoor use, SMD screens are much better than DIP.
TYPES OF SMD SCREENS
Explore a wide range of high-performance SMD screens designed to suit diverse environments, display goals, and marketing strategies. Each screen type serves a unique purpose and enhances audience engagement in its own way.

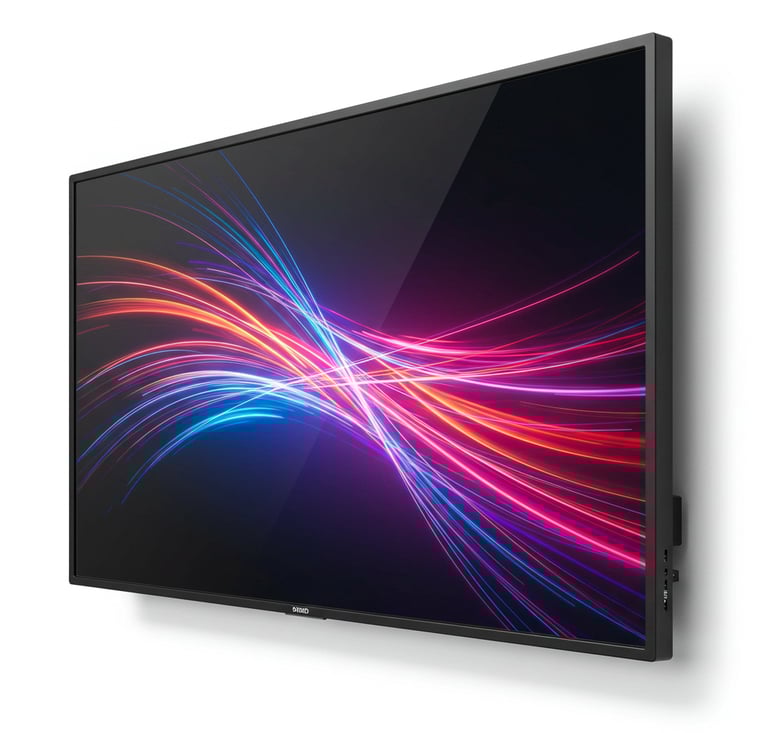

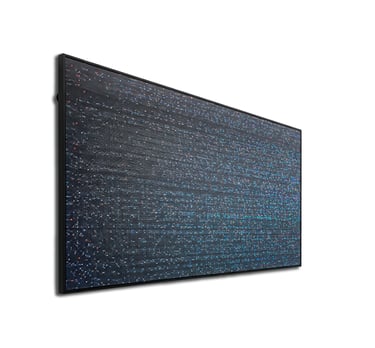

Wall-Mounted SMD Screens
Overview:
Wall-mounted SMD screens are installed directly onto flat wall surfaces, either indoors or outdoors. They’re ideal for maximizing visibility without taking up extra floor space.
Best For:
Shopfronts, building exteriors, reception areas, malls
Benefits:
✔️ Space-efficient
✔️ Eye-level engagement
✔️ Clean and sleek installation

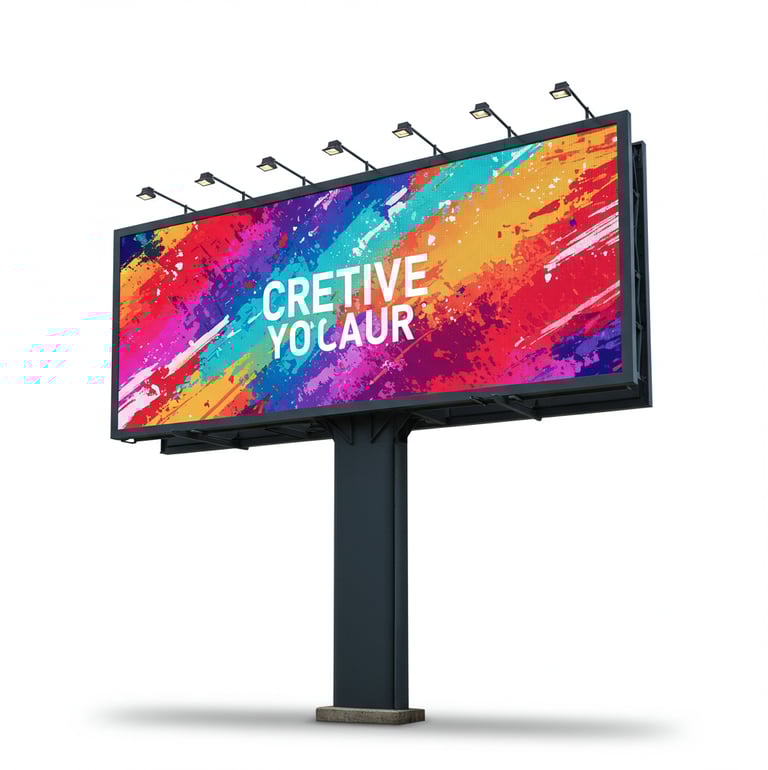

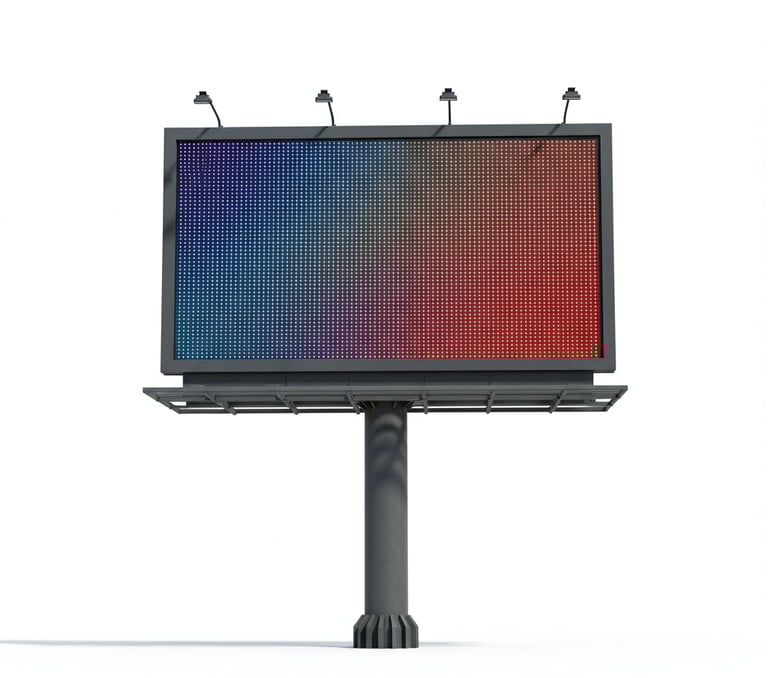

Creative Billboard Screens
Overview:
These large-format digital screens are designed for impactful outdoor advertising. Perfect for running videos, animated ads, or rotating content in high-traffic areas.
Best For:
Highways, commercial zones, outdoor campaigns
Benefits:
✔️ Massive reach and visibility
✔️ Eye-catching and modern look
✔️ Ideal for brand awareness and promotions

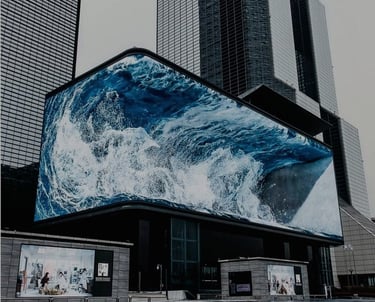

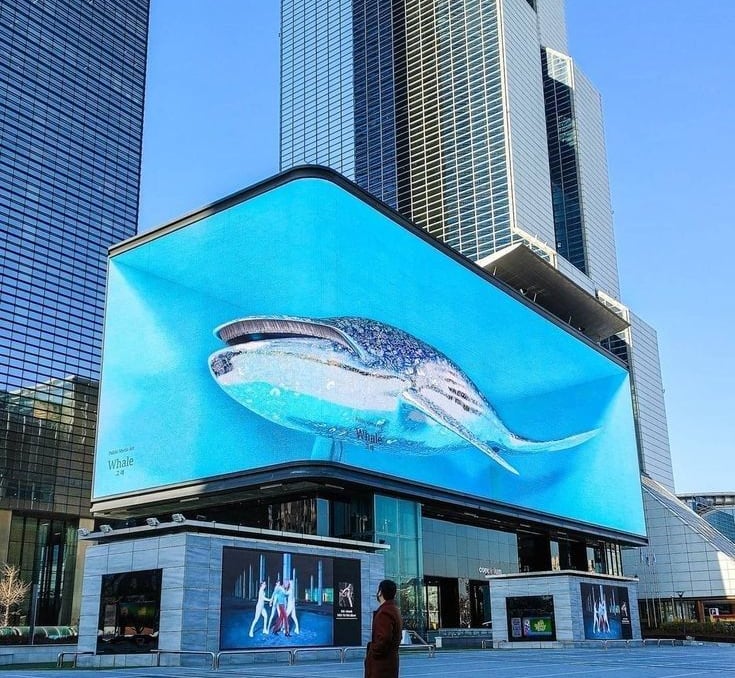

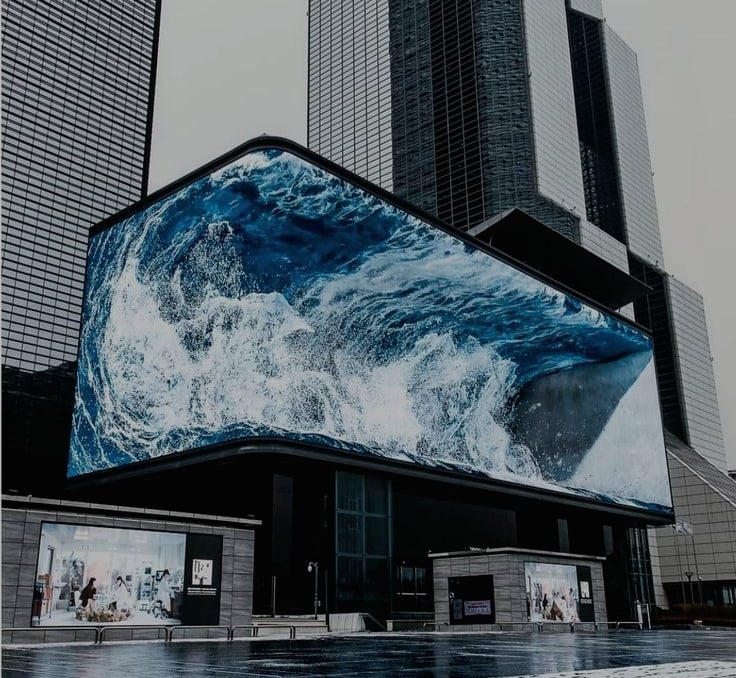

3D Right-Angle SMD Screens
Overview:
Installed at 90-degree angles (such as building corners), these screens are engineered to create stunning 3D illusions that appear to “pop out” of the structure — offering a next-level advertising experience.
Best For:
Urban malls, plazas, tech campaigns, premium ads
Benefits:
✔️ Viral-worthy 3D visuals
✔️ Strong viewer impact
✔️ Premium look and feel

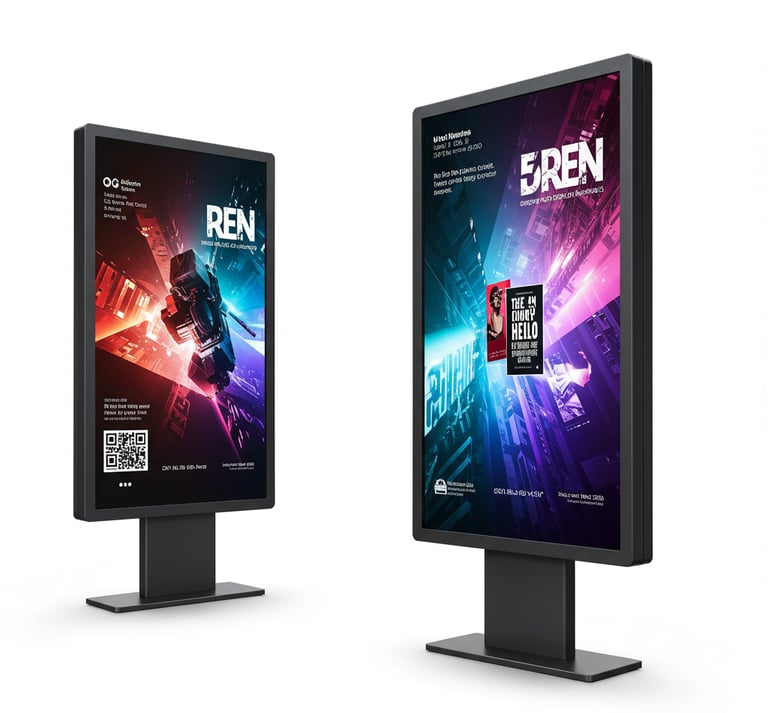

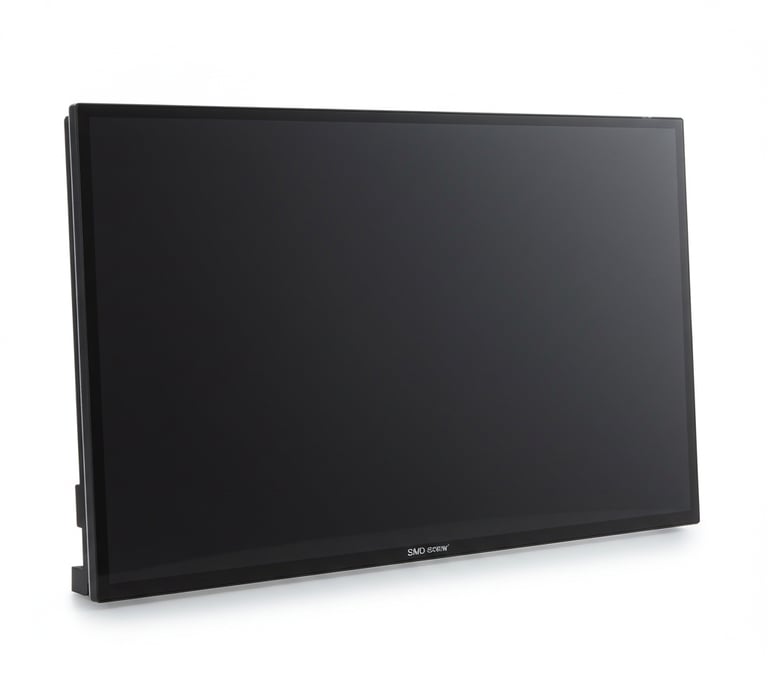

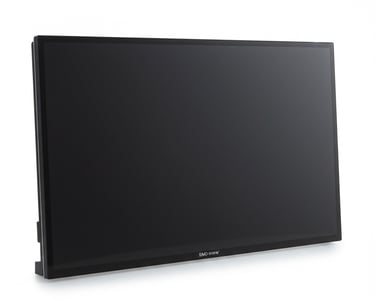

Flat SMD Screens
Overview:
The most common type, flat SMD screens, are simple, straight displays perfect for various general-purpose advertising and information needs.
Best For:
Event backdrops, digital signage, stores, presentations
Benefits:
✔️ Versatile and cost-effective
✔️ Clear and sharp visuals
✔️ Suitable for multiple content formats

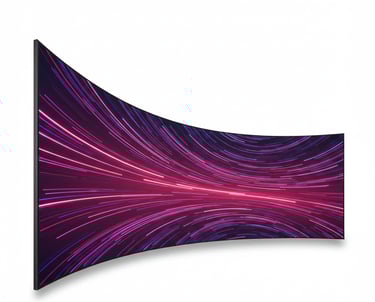

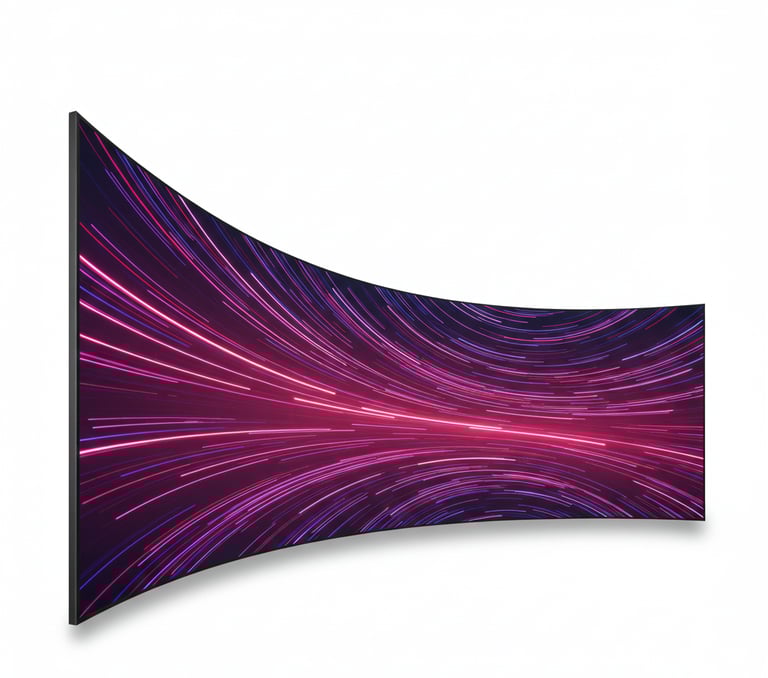

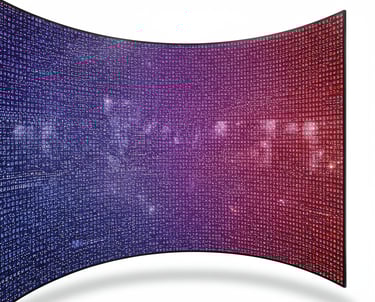

Curved SMD Screens
Overview:
Curved SMD screens feature a smooth, arched surface that enhances visual immersion and creates a more dynamic presentation — ideal for large areas and high-end installations.
Best For:
Showrooms, stadiums, exhibitions, airport halls
Benefits:
✔️ Immersive and elegant visuals
✔️ Wide-angle view with minimal distortion
✔️ Sleek, modern aesthetics
